A Shared Interface for Equipment and Public-Facing Systems
The 23.6-inch Windows Panel PC combines an industrial-grade LCD display with an embedded Windows computing platform. It is designed for integration into production equipment, control systems, exhibition fixtures and self service devices that require a large and clear interactive interface.
With a 1920 × 1080 Full HD display, 16:9 aspect ratio and 522 × 294 mm display area, this embedded industrial computer screen provides enough workspace for dashboards, process instructions, equipment monitoring and interactive applications.
This product should be evaluated as an embedded display and computing platform rather than a complete kiosk. The enclosure design, software, payment modules, scanners, printers and other peripherals are project-specific and should be confirmed according to the final application requirements.
Product Specifications
| Screen Size | 23.6 Inch |
| Display Area | 522 × 294 mm |
| Aspect Ratio | 16:9 |
| LCD Type | a-Si TFT-LCD Monitor |
| Maximum Resolution | 1920 × 1080 |
| Display Color | 16.7M Colors, 72% NTSC |
| Brightness | 250 cd/m² |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 89°/89°/89°/89° (CR≥10) |
| Response Time | 14ms |
| Panel Lifetime | 60,000 Hours |
| Processor Options | Intel i5-4310M / Intel i5-6100T Optional |
| Graphics | Intel HD Graphics 4600 / Intel HD Graphics 530 |
| RAM | 4GB / 8GB Optional |
| Storage | 128GB / 256GB Optional |
| Operating System | Windows 10 / Windows 11 Optional |
| Wireless | Built-in WiFi 802.11n |
| Interfaces | HDMI ×1, USB ×4, RJ45 Ethernet |
| Audio | Stereo Speaker, 2 × 5W, >80dB |
| Power Supply | AC 100V~240V, 50/60Hz |
| Maximum Power Consumption | ≤45W |
| Standby Power | <1W |
| Operating Temperature | 0℃ ~ 50℃ |
| Storage Temperature | -10℃ ~ +60℃ |
| Device Dimension | 584.9 × 360.9 × 50 mm |
| Net Weight | 8 kg |
Designed for Self Service Devices and Industrial Applications
The 23.6-inch embedded computer screen provides a practical interface solution for both operators and public users. The large display area allows designers to arrange menus, operating instructions, production information and monitoring data clearly.
For self service devices, the wide screen format supports guided workflows with clear navigation buttons and visual instructions. For industrial applications, it can display machine status, production data, alarms and process information in real time.
Flexible Windows Computing Solution
The integrated Windows computer platform allows equipment manufacturers and system integrators to select suitable hardware according to application requirements. Processor, memory and storage options can be matched with software workload, peripheral requirements and deployment environments.
The system is suitable for applications requiring local data processing, multimedia playback, industrial software operation and network-based management.
Open Frame Design for Easy Integration
The open-frame structure allows OEM manufacturers and system integrators to design their own enclosure and installation method. The display can be embedded into kiosks, cabinets, industrial equipment and customized terminal systems according to different project requirements.

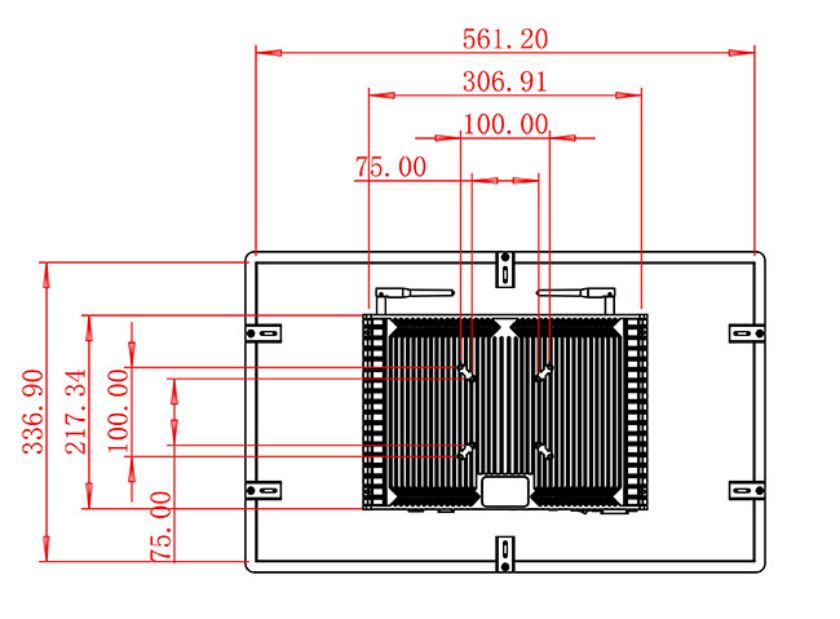

Before mass production, the mounting position, cable routing, ventilation space and maintenance access should be confirmed through engineering drawings and prototype testing. This helps ensure stable installation and consistent production quality.
Open Frame Industrial Display Design
Flexible embedded installation structure makes the monitor suitable for self-service terminals, industrial control systems and customized equipment projects.
Applications
Self Service Kiosk
The 23.6-inch Windows Panel PC provides a large interactive interface for self-service applications, including information terminals, ordering systems, registration kiosks and public service equipment.
Industrial HMI System
Suitable for machine control interfaces, production monitoring systems and automation equipment. Operators can view equipment status, process data and operational instructions clearly.
Exhibition and Interactive Display Terminal
The Full HD display platform is suitable for technology exhibitions, product demonstrations and interactive presentation systems that require a professional visual experience.
Smart Retail Equipment
Ideal for digital menus, smart vending machines, interactive shopping terminals and customized retail equipment requiring embedded computing capability.
Integration and Project Support
For OEM projects, buyers should provide enclosure drawings, software requirements, interface requirements, operating environment and expected quantity. These details help confirm the appropriate hardware configuration before sampling and production.
The approved sample can be used as a reference for mechanical installation, software compatibility, cable arrangement and quality inspection during future production batches.
Request a Customized Solution
ZXT LCD provides embedded display and industrial computer solutions for kiosk manufacturers, system integrators and equipment builders. Contact our team with your application requirements to discuss configuration options, customization possibilities and project support.
